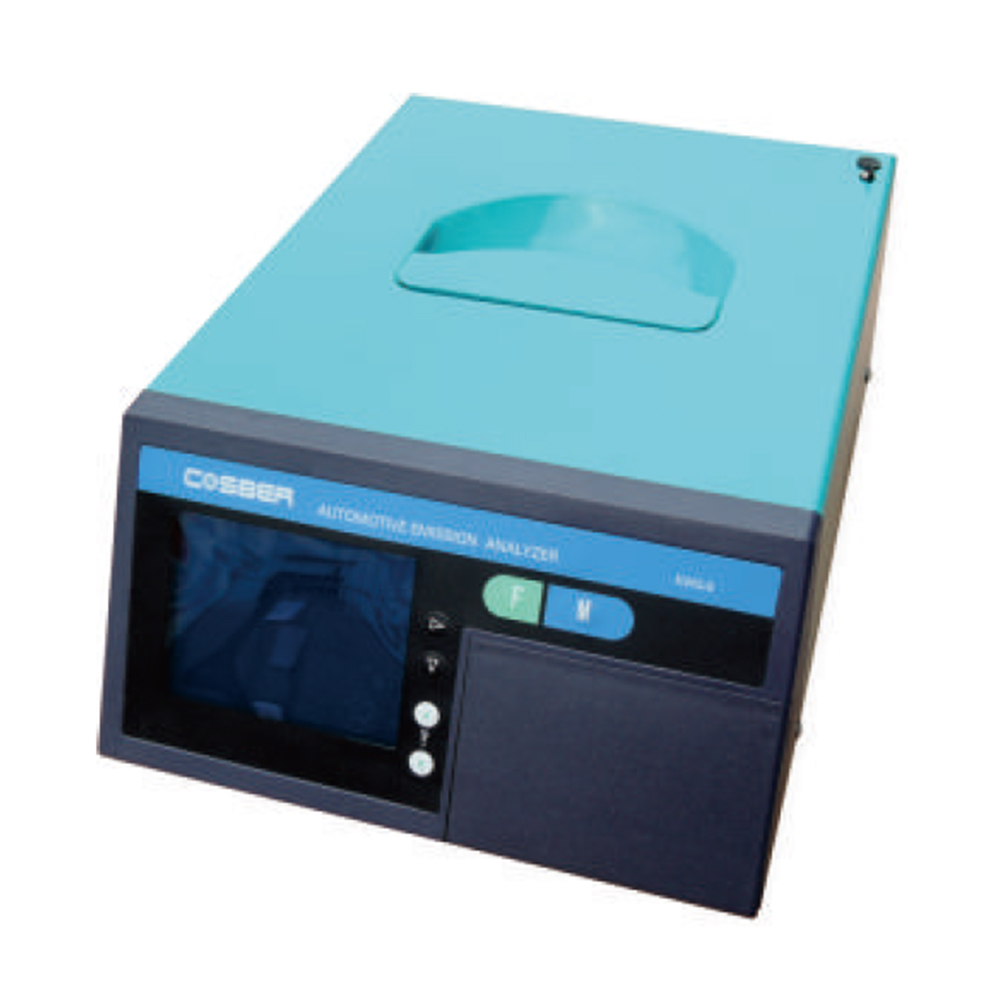

Product Description

• Measure automotive emission exhaust CO, HC, CO², O², and NO
• LCD display with operation menu
• OIML Class 0
• Auto zero function, calibration mode and leak check
• Flexible probe can be used in almost all kinds of exhaust
• Equipped aluminum alloy drain separator
• Auto compensation ambient pressure and environmental temperature
• Auto calculate engine AFR with O² sensor option
• Able to store up to 200 measuring results
• Equipped with RS-232 interface
• Can be integrated into fully automated test lane
• Fully customizable based on setup requirement
• SIRIM calibration can be attained

Accuracy:
▪ CO: 0-10.00% within ±0.02% vol or ±3% of readings, 10.01-15.00% within ±5% of readings
▪ CO²: 0-16.00% within ±0.3% vol or ±3% of readings, 16.01-18.00% within ±5% of readings
▪ HC: 0-2000 ppm within ±4 ppm vol or ±3% of readings, 2001-5000 ppm vol within ±5% of readings, 5001-10000 ppm vol within ±10% of readings
▪ O²: 0-10.00% within ±0.4% vol or ±3% of readings, 10.01-25.00% within ±1.0% vol
▪ NO: 0-5000 ppm vol within ±8% ppm vol or ±3% of readings
Warm-up Time: 30 seconds
Response Time: 10 seconds
